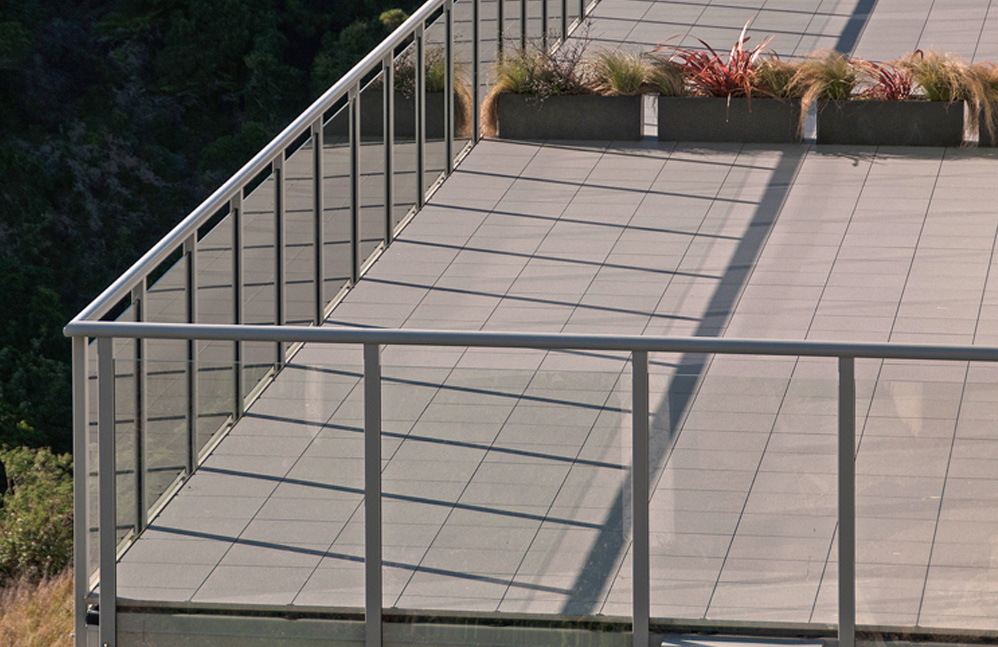

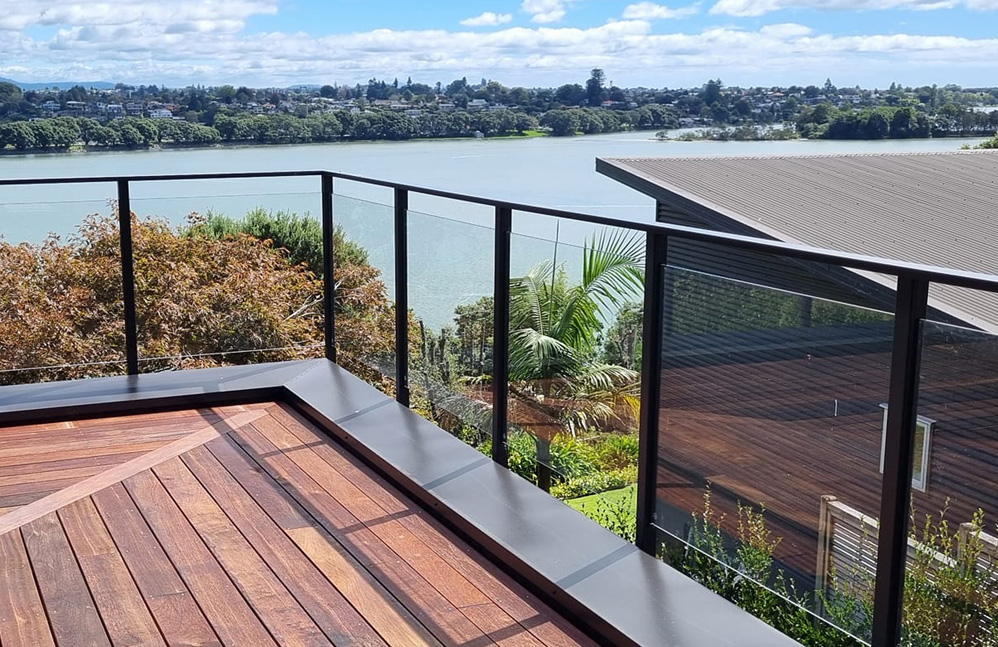

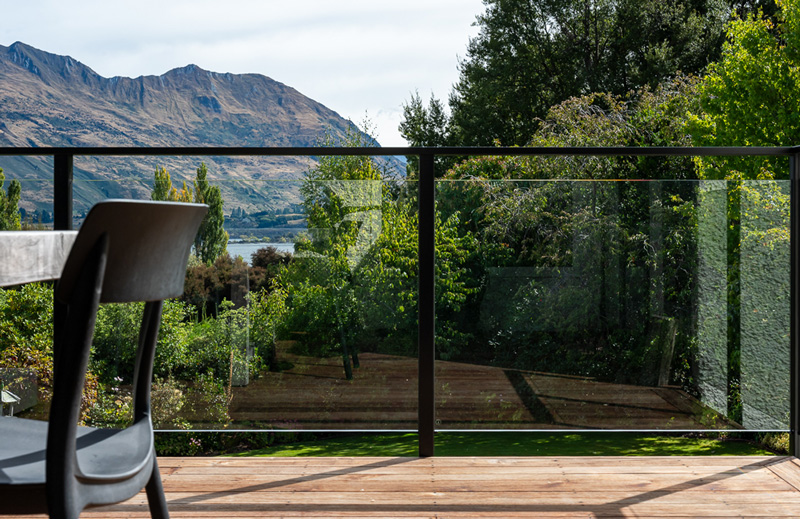

Spectra

Although part of the Framed Glass category of UNEX products, the Spectra style does it best to do away with a frame while still having the robustness of a top rail linking all the posts together. This style's glass infill spans the full width from post to post but has a gap at the top, much like the Camden style, to let airflow through but deflects even more of the harsh elements with its full width glass coverage by being recessed into channel on each post.

Framed Glass Balustrade - Spectra Style

ART Top Rail

Per lineal metre
Top rail
ART

Inner rail
DRH

Infill
AIR

Retaining gaskets
SRB
SRE


Top rail rivets
FS4-4

Wedge gaskets
SWE70
SWE50
SWE55
SWE35





Per intermediate post
Post
APR2
APS
APE



Base
BSRF

Base
FVHT10-50.T1

Screws

Bracket
AKS2

Top rail screws
FV10-19.T1

Setting blocks
SBH


Per end post
Post
As above

End infill
AIR2

Base
As above

Base screws
As above

Bracket
As above

Top rail screws
As above

Setting blocks
As above

End cap
VCT

End cap rivets
FS4-6

Login into Ezispec to download a PS1 for this style.

PRR Top Rail

Per lineal metre
Top rail
PRR

Inner rail
DRH

Infill
AIR

Retaining gaskets
SRB
SRE


Top rail rivets
FS4-4

Wedge gaskets
SWE70
SWE50
SWE55
SWE35





Per intermediate post
Post
APR2
APS
APE



Base
BSRF

Base
FVHT10-50.T1

Screws

Bracket
AKS2

Top rail screws
FV10-19.T1

Setting blocks
SBH


Per end post
Post
As above

End infill
AIR2

Base
As above

Base screws
As above

Bracket
As above

Top rail screws
As above

Setting blocks
As above

End cap
VCT

End cap rivets
FS4-6

Login into Ezispec to download a PS1 for this style.

VRE Top Rail

Per lineal metre
Top rail
VRE

Inner rail
DRH

Infill
AIR

Retaining gaskets
SRB
SRE


Top rail rivets
FS4-4

Wedge gaskets
SWE70
SWE50
SWE55
SWE35





Per intermediate post
Post
APR2
APS
APE



Base
BSRF

Base
FVHT10-50.T1

Screws

Bracket
AKS2

Top rail screws
FV10-19.T1

Setting blocks
SBH


Per end post
Post
As above

End infill
AIR2

Base
As above

Base screws
As above

Bracket
As above

Top rail screws
As above

Setting blocks
As above

End cap
VCT

End cap rivets
FS4-6

Login into Ezispec to download a PS1 for this style.

VRR Top Rail

Per lineal metre
Top rail
VRR

Inner rail
DRH

Infill
AIR

Retaining gaskets
SRB
SRE


Top rail rivets
FS4-4

Wedge gaskets
SWE70
SWE50
SWE55
SWE35





Per intermediate post
Post
APR2
APS
APE



Base
BSRF

Base
FVHT10-50.T1

Screws

Bracket
AKS2

Top rail screws
FV10-19.T1

Setting blocks
SBH


Per end post
Post
As above

End infill
AIR2

Base
As above

Base screws
As above

Bracket
As above

Top rail screws
As above

Setting blocks
As above

End cap
VCT

End cap rivets
FS4-6

Login into Ezispec to download a PS1 for this style.

VRT Top Rail

Per lineal metre
Top rail
VRT

Inner rail
DRH

Infill
AIR

Retaining gaskets
SRB
SRE


Top rail rivets
FS4-4

Wedge gaskets
SWE70
SWE50
SWE55
SWE35





Per intermediate post
Post
APR2
APS
APE



Base
BSRF

Base
FVHT10-50.T1

Screws

Bracket
AKS2

Top rail screws
FV10-19.T1

Setting blocks
SBH


Per end post
Post
As above

End infill
AIR2

Base
As above

Base screws
As above

Bracket
As above

Top rail screws
As above

Setting blocks
As above

End cap
VCT

End cap rivets
FS4-6

Login into Ezispec to download a PS1 for this style.
