Avon

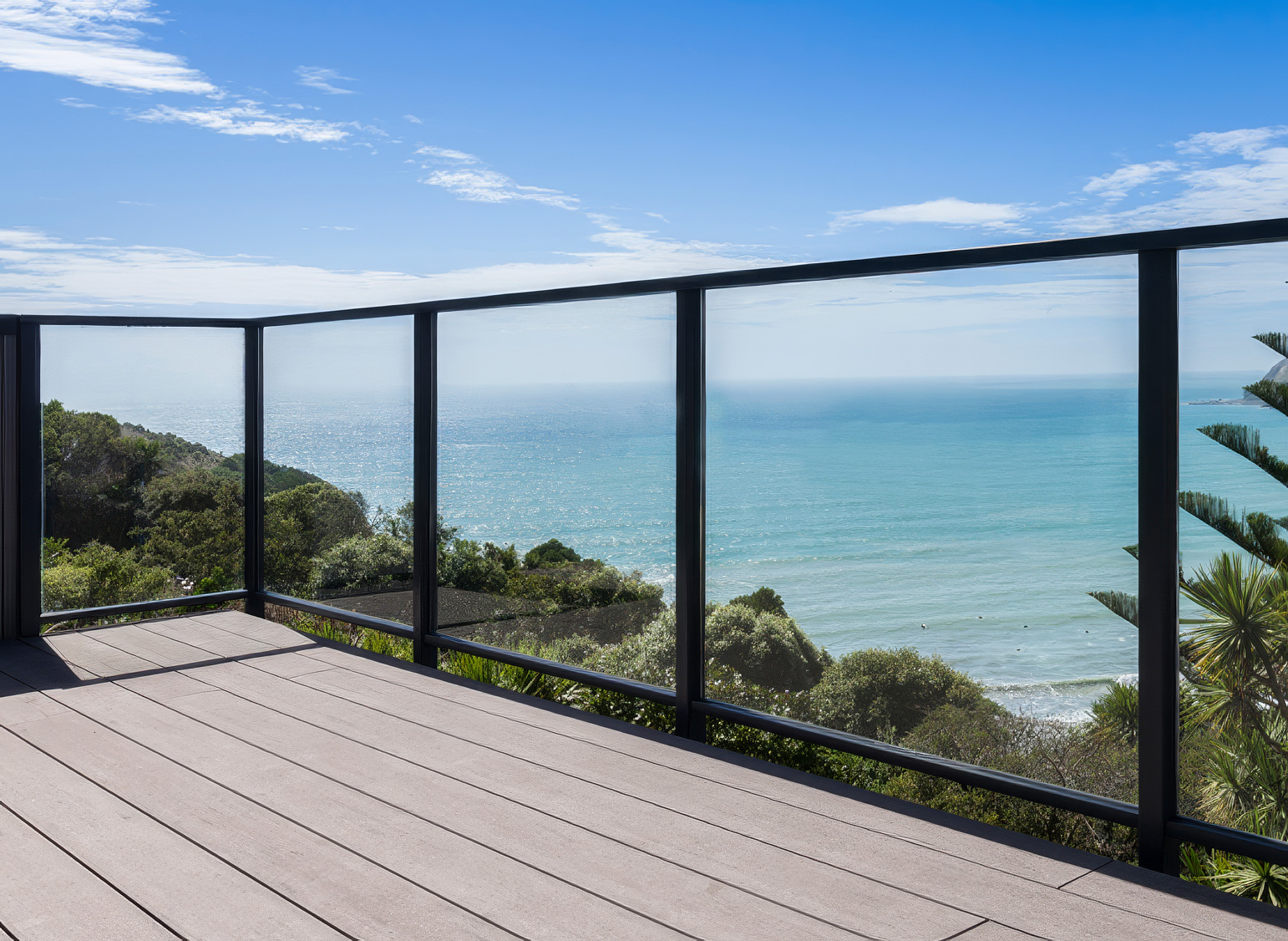

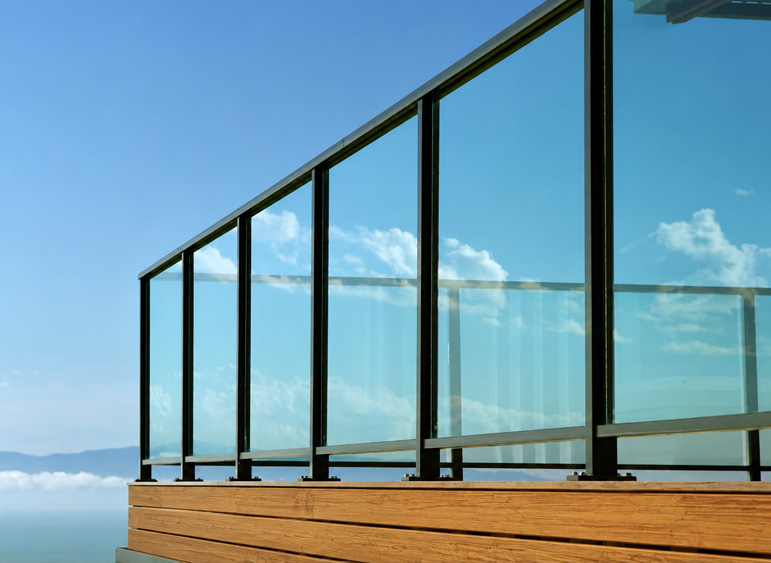

The Avon style of framed glass balustrade is ideal for modern architectural homes. With any combination of rail type, the more rectangular top rails below give this type of balustrade a minimalist sense often associated with mono-pitch roofs and metallic finishes. This way homeowners are able to still see and look out but also have their stylish homes be seen when they are such unique designs. Combining the style with the numerous potential finishes can give a balcony a sense of understated class.

Log in to your UNEX Account to gain access to a number of digital drawing files to assist with specifying UNEX balustrades whether this is with Style and Assembly Specification DWGs or fully parametric BIM-ready Revit files for this style, each containing a full suite of interchangeable rails types, as per below:

Framed Glass Balustrade - Avon Style

ART Top Rail

Per lineal metre
Top rail
ART

Inner rail
PZT Glazing

Retaining gaskets
SRD
SRB
SRG70



Wedge gaskets
SWE70

Top rail rivets
FS4-4

Lower rail
VRL2


Per intermediate post
Post
VPM2
VPH2
VPE



Base
BSRF

Base
FVHT10-50.T1

screws

Connector
ANGG

Connector
FT10-32.T1

screws

Top rail screws
FV10-19.T1

Setting blocks
SBH



Per end post
Post
As above

Base
As above

Base screws
As above

Connector
As above

Connector screws
As above

Top rail screws
As above

Setting blocks
As above

End cap
ACT

End cap rivets
FS4-6

Login into Ezispec to download a PS1 for this style.

PRR Top Rail

Per lineal metre
Top rail
PRR

Inner rail
PZT Glazing

Retaining gaskets
SRD
SRB
SRG70



Wedge gaskets
SWE70

Top rail rivets
FS4-4

Lower rail
VRL2


Per intermediate post
Post
VPM2
VPH2
VPE



Base
BSRF

Base
FVHT10-50.T1

screws

Connector
ANGG

Connector
FT10-32.T1

screws

Top rail screws
FV10-19.T1

Setting blocks
SBH



Per end post
Post
As above

Base
As above

Base screws
As above

Connector
As above

Connector screws
As above

Top rail screws
As above

Setting blocks
As above

End cap
PRCT

End cap rivets
FS4-6

Login into Ezispec to download a PS1 for this style.

VRE Top Rail

Per lineal metre
Top rail
VRE

Inner rail
PZT Glazing

Retaining gaskets
SRD
SRB
SRG70



Wedge gaskets
SWE70

Top rail rivets
FS4-4

Lower rail
VRL2


Per intermediate post
Post
VPM2
VPH2
VPE



Base
BSRF

Base
FVHT10-50.T1

screws

Connector
ANGG

Connector
FT10-32.T1

screws

Top rail screws
FV10-19.T1

Setting blocks
SBH



Per end post
Post
As above

Base
As above

Base screws
As above

Connector
As above

Connector screws
As above

Top rail screws
As above

Setting blocks
As above

End cap
VECT

End cap rivets
FS4-6

Login into Ezispec to download a PS1 for this style.

VRR Top Rail

Per lineal metre
Top rail
VRR

Inner rail
PZT Glazing

Retaining gaskets
SRD
SRB
SRG70



Wedge gaskets
SWE70

Top rail rivets
FS4-4

Lower rail
VRL2


Per intermediate post
Post
VPM2
VPH2
VPE



Base
BSRF

Base
FVHT10-50.T1

screws

Connector
ANGG

Connector
FT10-32.T1

screws

Top rail screws
FV10-19.T1

Setting blocks
SBH



Per end post
Post
As above

Base
As above

Base screws
As above

Connector
As above

Connector screws
As above

Top rail screws
As above

Setting blocks
As above

End cap
VRCT

End cap rivets
FS4-6

Login into Ezispec to download a PS1 for this style.

VRT Top Rail

Per lineal metre
Top rail
VRT

Inner rail
PZT Glazing

Retaining gaskets
SRD
SRB
SRG70



Wedge gaskets
SWE70

Top rail rivets
FS4-4

Lower rail
VRL2


Per intermediate post
Post
VPM2
VPH2
VPE



Base
BSRF

Base
FVHT10-50.T1

screws

Connector
ANGG

Connector
FT10-32.T1

screws

Top rail screws
FV10-19.T1

Setting blocks
SBH



Per end post
Post
As above

Base
As above

Base screws
As above

Connector
As above

Connector screws
As above

Top rail screws
As above

Setting blocks
As above

End cap
VCT

End cap rivets
FS4-6

Login into Ezispec to download a PS1 for this style.
