Wilton

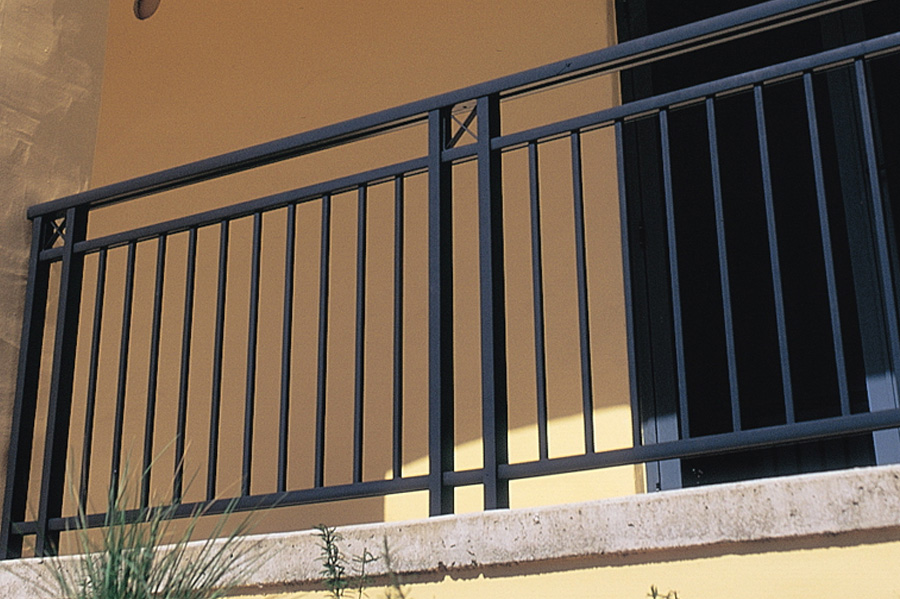

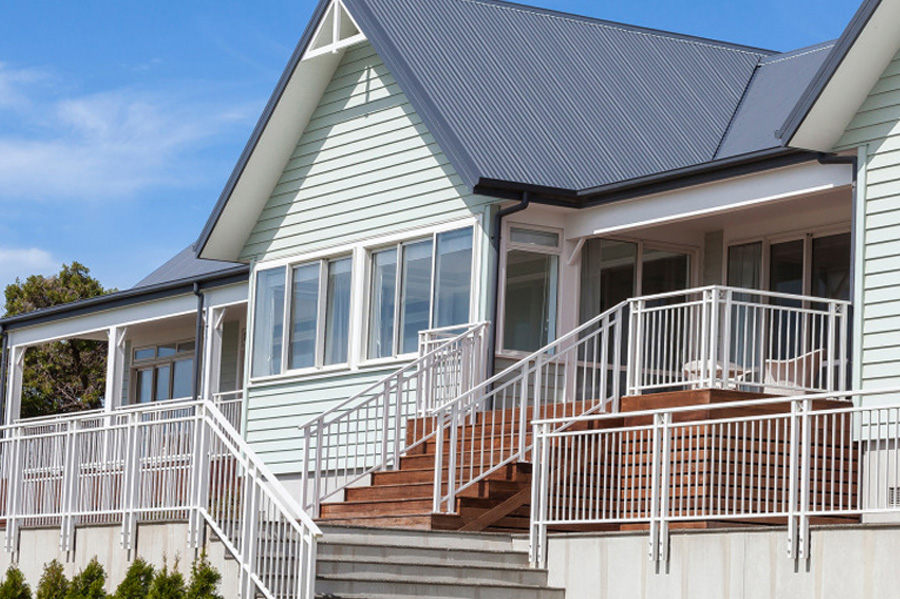

The Wilton style of framed balustrades is unique in that this style is the ONLY ONE which allows for a corner motif to be used in either a criss-cross, ring, or diamond shape. This optional feature gives the Wilton style a classic elegance with a modern twist. This double-post, double-top rail system gives this balustrade a presence and dominance from the amount of aluminium used emulating a Mediterranean or European styling.

Log in to your UNEX Account to gain access to a number of digital drawing files to assist with specifying UNEX balustrades whether this is with Style and Assembly Specification DWGs or fully parametric BIM-ready Revit files for this style, each containing a full suite of interchangeable rails types, as per below:

Framed Balustrade - Wilton Style

ART Top Rail

Per lineal metre
Top rail
ART

Inner rail
DRH

Mid rail
VRL2

Infill
DIA

Lower rail
VRL2

Baluster
DTS3
DTH


Baluster screws
FV6-19

Top rail rivets
FS4-4


Per intermediate post
Post
VPM2
VPH2
VPE



Base
BMRJ

Base
FVHT10-50.T1

screws

Connector
ANGU

Connector
FT10-32.T1

screws

Top rail screws
FV10-19.T1



Per end post
Post
As above

Base
As above

Base screws
As above

Connector
As above

Connector screws
As above

Top rail screws
As above

End cap
VCT

End cap rivets
FS4-6

Login into Ezispec to download a PS1 for this style.

PRR Top Rail

Per lineal metre
Top rail
PRR

Inner rail
DRH

Mid rail
VRL2

Infill
DIA

Lower rail
VRL2

Baluster
DTS3
DTH


Baluster screws
FV6-19

Top rail rivets
FS4-4


Per intermediate post
Post
VPM2
VPH2
VPE



Base
BMRJ

Base
FVHT10-50.T1

screws

Connector
ANGU

Connector
FT10-32.T1

screws

Top rail screws
FV10-19.T1



Per end post
Post
As above

Base
As above

Base screws
As above

Connector
As above

Connector screws
As above

Top rail screws
As above

End cap
VCT

End cap rivets
FS4-6

Login into Ezispec to download a PS1 for this style.

VRE Top Rail

Per lineal metre
Top rail
VRE

Inner rail
DRH

Mid rail
VRL2

Infill
DIA

Lower rail
VRL2

Baluster
DTS3
DTH


Baluster screws
FV6-19

Top rail rivets
FS4-4


Per intermediate post
Post
VPM2
VPH2
VPE



Base
BMRJ

Base
FVHT10-50.T1

screws

Connector
ANGU

Connector
FT10-32.T1

screws

Top rail screws
FV10-19.T1



Per end post
Post
As above

Base
As above

Base screws
As above

Connector
As above

Connector screws
As above

Top rail screws
As above

End cap
VCT

End cap rivets
FS4-6

Login into Ezispec to download a PS1 for this style.

VRR Top Rail

Per lineal metre
Top rail
VRR

Inner rail
DRH

Mid rail
VRL2

Infill
DIA

Lower rail
VRL2

Baluster
DTS3
DTH


Baluster screws
FV6-19

Top rail rivets
FS4-4


Per intermediate post
Post
VPM2
VPH2
VPE



Base
BMRJ

Base
FVHT10-50.T1

screws

Connector
ANGU

Connector
FT10-32.T1

screws

Top rail screws
FV10-19.T1



Per end post
Post
As above

Base
As above

Base screws
As above

Connector
As above

Connector screws
As above

Top rail screws
As above

End cap
VCT

End cap rivets
FS4-6

Login into Ezispec to download a PS1 for this style.

VRT Top Rail

Per lineal metre
Top rail
VRT

Inner rail
DRH

Mid rail
VRL2

Infill
DIA

Lower rail
VRL2

Baluster
DTS3
DTH


Baluster screws
FV6-19

Top rail rivets
FS4-4


Per intermediate post
Post
VPM2
VPH2
VPE



Base
BMRJ

Base
FVHT10-50.T1

screws

Connector
ANGU

Connector
FT10-32.T1

screws

Top rail screws
FV10-19.T1



Per end post
Post
As above

Base
As above

Base screws
As above

Connector
As above

Connector screws
As above

Top rail screws
As above

End cap
VCT

End cap rivets
FS4-6

Login into Ezispec to download a PS1 for this style.
