Siena

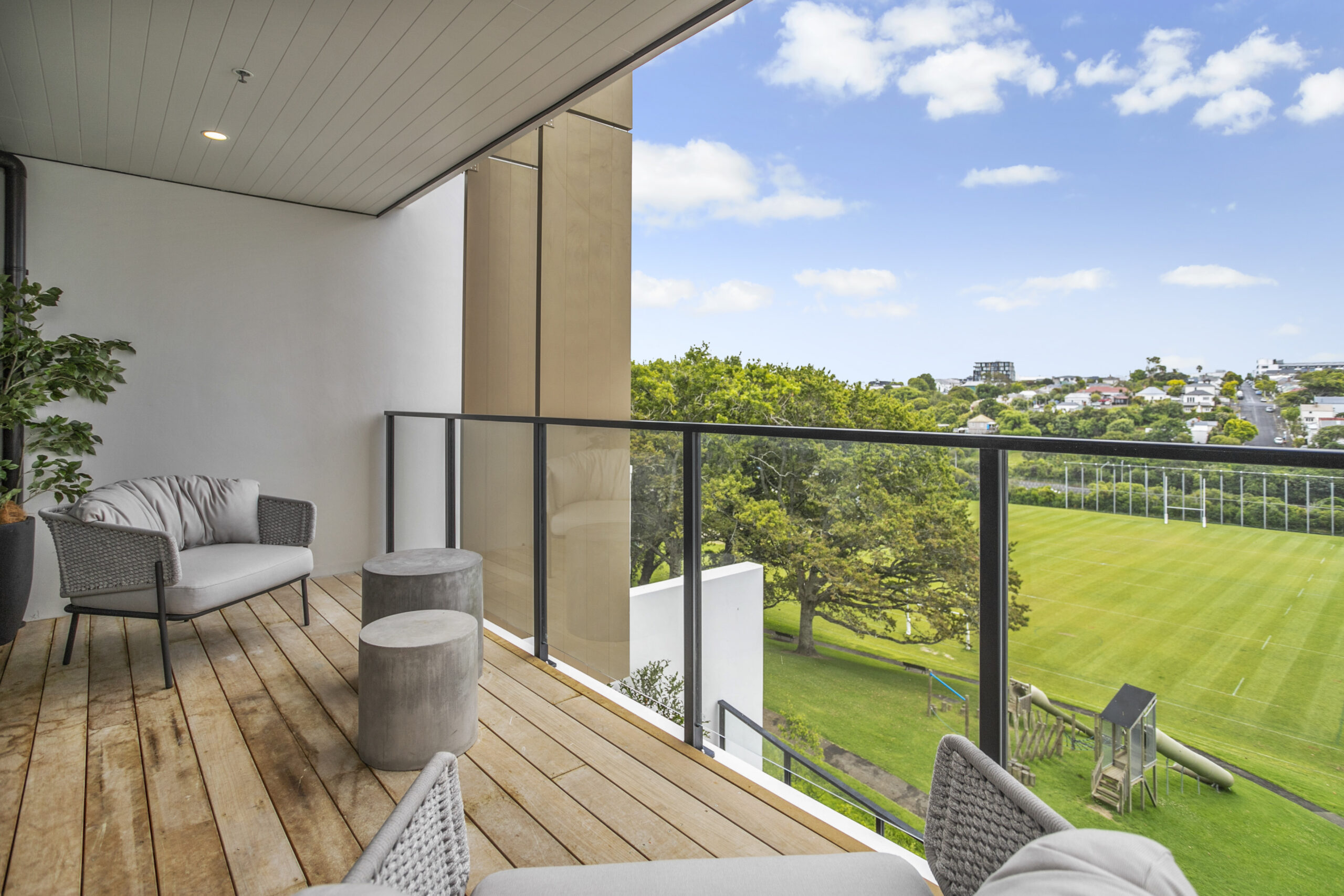

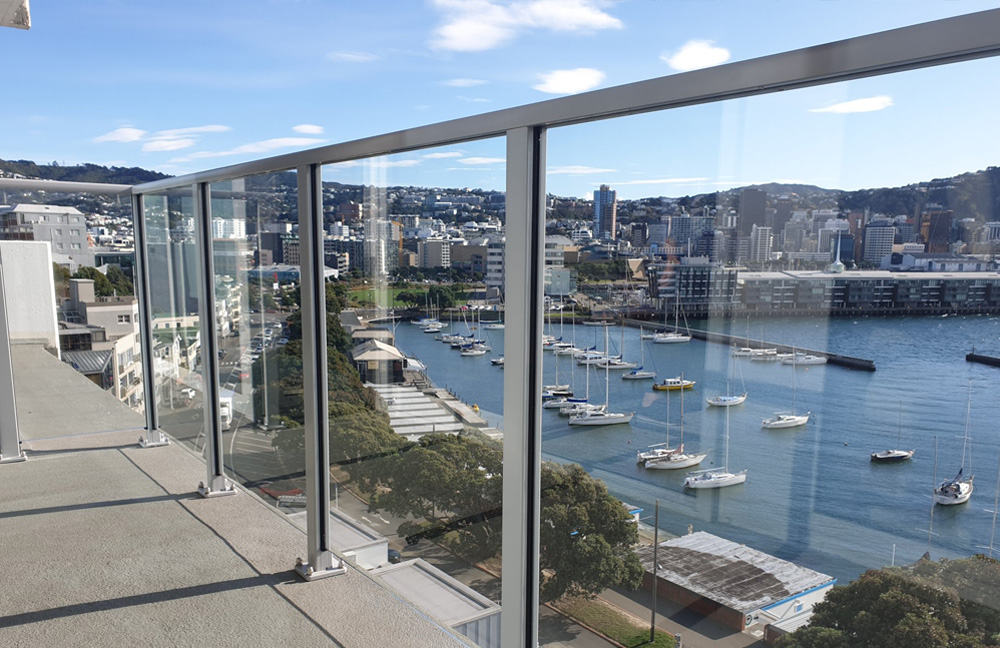

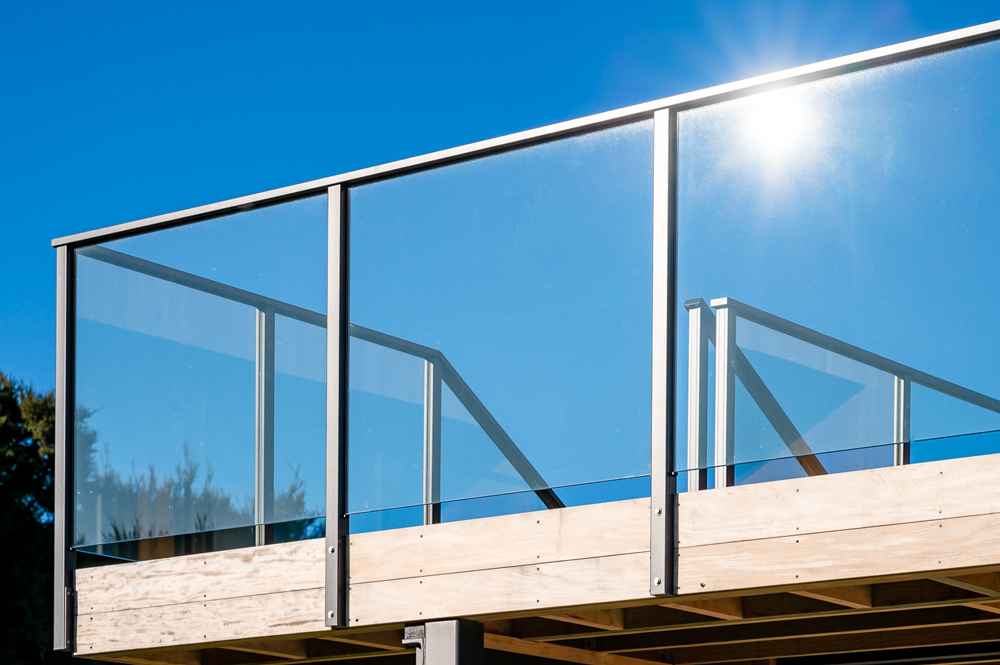

Being one of our most popular styles, Siena framed glass balustrades give you the best of both worlds in the semiframeless glass category. Offering both a top rail to lean on and a full panel of glass keeping the view, this style allows for having your cake and eating it too. as with all of UNEX's semiframelss glass styles, this glass spans from post-to-post to protect from the elements when the ocean breeze or wind up the hillside picks up.

Log in to your UNEX Account to gain access to a number of digital drawing files to assist with specifying UNEX balustrades whether this is with Style and Assembly Specification DWGs or fully parametric BIM-ready Revit files for this style, each containing a full suite of interchangeable rails types, as per below:

Product Styles - Siena

ART Top Rail

Per lineal metre
Top rail
ART

Inner rail
PZT

Infill
AIR

Retaining gaskets
SRG70
SRG40


Top rail rivets
FS4-4

Wedge gaskets
SWE70
SWE50
SWE55
SWE35





Per intermediate post
Post
APR2
APS
APE



Base
BSRF

Base
FVHT10-50.T1

Screws

Bracket
AKS2

Top rail screws
FV10-19.T1

Setting blocks
SBH


Per end post
Post
As above

Base
As above

Base screws
As above

Bracket
As above

Top rail screws
As above

Setting blocks
As above

End cap
ACT

End cap rivets
FS4-6

Login into Ezispec to download a PS1 for this style.

PRR Top Rail

Per lineal metre
Top rail
PRR

Inner rail
PZT

Infill
AIR

Retaining gaskets
SRG70
SRG40


Top rail rivets
FS4-4

Wedge gaskets
SWE70
SWE50
SWE55
SWE35





Per intermediate post
Post
APR2
APS
APE



Base
BSRF

Base
FVHT10-50.T1

Screws

Bracket
AKS2

Top rail screws
FV10-19.T1

Setting blocks
SBH


Per end post
Post
As above

Base
As above

Base screws
As above

Bracket
As above

Top rail screws
As above

Setting blocks
As above

End cap
PRCT

End cap rivets
FS4-6

Login into Ezispec to download a PS1 for this style.

VRE Top Rail

Per lineal metre
Top rail
VRE

Inner rail
PZT

Infill
AIR

Retaining gaskets
SRG70
SRG40


Top rail rivets
FS4-4

Wedge gaskets
SWE70
SWE50
SWE55
SWE35





Per intermediate post
Post
APR2
APS
APE



Base
BSRF

Base
FVHT10-50.T1

Screws

Bracket
AKS2

Top rail screws
FV10-19.T1

Setting blocks
SBH


Per end post
Post
As above

Base
As above

Base screws
As above

Bracket
As above

Top rail screws
As above

Setting blocks
As above

End cap
VECT

End cap rivets
FS4-6

Login into Ezispec to download a PS1 for this style.

VRR Top Rail

Per lineal metre
Top rail
VRR

Inner rail
PZT

Infill
AIR

Retaining gaskets
SRG70
SRG40


Top rail rivets
FS4-4

Wedge gaskets
SWE70
SWE50
SWE55
SWE35





Per intermediate post
Post
APR2
APS
APE



Base
BSRF

Base
FVHT10-50.T1

Screws

Bracket
AKS2

Top rail screws
FV10-19.T1

Setting blocks
SBH


Per end post
Post
As above

Base
As above

Base screws
As above

Bracket
As above

Top rail screws
As above

Setting blocks
As above

End cap
VRCT

End cap rivets
FS4-6

Login into Ezispec to download a PS1 for this style.

VRT Top Rail

Per lineal metre
Top rail
VRT

Inner rail
PZT

Infill
AIR

Retaining gaskets
SRG70
SRG40


Top rail rivets
FS4-4

Wedge gaskets
SWE70
SWE50
SWE55
SWE35





Per intermediate post
Post
APR2
APS
APE



Base
BSRF

Base
FVHT10-50.T1

Screws

Bracket
AKS2

Top rail screws
FV10-19.T1

Setting blocks
SBH


Per end post
Post
As above

Base
As above

Base screws
As above

Bracket
As above

Top rail screws
As above

Setting blocks
As above

End cap
VCT

End cap rivets
FS4-6

Login into Ezispec to download a PS1 for this style.
