Camden

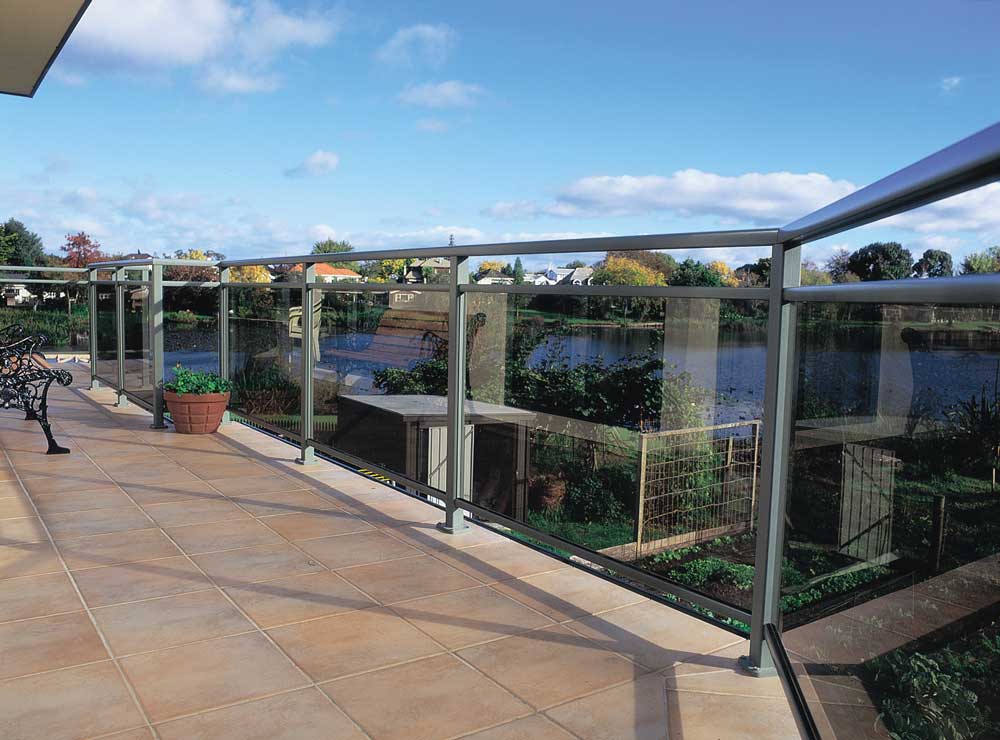

The Camden style of framed balustrade is UNEX's timeless design which suits a wide range of architectural themes. Less apparent technical design innovation offer clean joints, concealed assembly fasteners and rounded edges. Each of the Framed designs incorporate vertical balustrade infill and are an economical and aesthetically attractive option.

Log in to your UNEX Account to gain access to a number of digital drawing files to assist with specifying UNEX balustrades whether this is with Style and Assembly Specification DWGs or fully parametric BIM-ready Revit files for this style, each containing a full suite of interchangeable rails types, as per below:

Framed Balustrade - Camden Style

ART Top Rail

Per lineal metre
Top Rail
ART

Inner Rail
DRH

Mid Rail
VRL2

Retaining Gaskets
SRD

Top rail rivets
FS4-4

Lower Rail
VRL2

Retaining Gaskets
SRB

Wedge Gaskets
SWE70


Per intermediate post
Post
VPM2
VPH2
VPE



Base
BSRF

Base
FVHT10-50.T1

Screws

Connector
ANGG

Connector
FT10-32.T1

Screws

Top Rail Screws
FV10-19.T1

Setting Blocks
SBS


Per end post
Post
As above

Base
As above

Base Screws
As above

Connector
As above

Connector Screws
As above

Top Rail Screws
As above

Setting Blocks
As above

End Cap
VCT

End Cap Rivets
FS4-6

Login into Ezispec to download a PS1 for this style.

PRR Top Rail

Per lineal metre
Top Rail
PRR

Inner Rail
DRH

Mid Rail
VRL2

Retaining Gaskets
SRD

Top rail rivets
FS4-4

Lower Rail
VRL2

Retaining Gaskets
SRB

Wedge Gaskets
SWE70


Per intermediate post
Post
VPM2
VPH2
VPE



Base
BSRF

Base
FVHT10-50.T1

Screws

Connector
ANGG

Connector
FT10-32.T1

Screws

Top Rail Screws
FV10-19.T1

Setting Blocks
SBS


Per end post
Post
As above

Base
As above

Base Screws
As above

Connector
As above

Connector Screws
As above

Top Rail Screws
As above

Setting Blocks
As above

End Cap
VCT

End Cap Rivets
FS4-6

Login into Ezispec to download a PS1 for this style.

VRE Top Rail

Per lineal metre
Top Rail
VRE

Inner Rail
DRH

Mid Rail
VRL2

Retaining Gaskets
SRD

Top rail rivets
FS4-4

Lower Rail
VRL2

Retaining Gaskets
SRB

Wedge Gaskets
SWE70


Per intermediate post
Post
VPM2
VPH2
VPE



Base
BSRF

Base
FVHT10-50.T1

Screws

Connector
ANGG

Connector
FT10-32.T1

Screws

Top Rail Screws
FV10-19.T1

Setting Blocks
SBS


Per end post
Post
As above

Base
As above

Base Screws
As above

Connector
As above

Connector Screws
As above

Top Rail Screws
As above

Setting Blocks
As above

End Cap
VCT

End Cap Rivets
FS4-6

Login into Ezispec to download a PS1 for this style.

VRR Top Rail

Per lineal metre
Top Rail
VRR

Inner Rail
DRH

Mid Rail
VRL2

Retaining Gaskets
SRD

Top rail rivets
FS4-4

Lower Rail
VRL2

Retaining Gaskets
SRB

Wedge Gaskets
SWE70


Per intermediate post
Post
VPM2
VPH2
VPE



Base
BSRF

Base
FVHT10-50.T1

Screws

Connector
ANGG

Connector
FT10-32.T1

Screws

Top Rail Screws
FV10-19.T1

Setting Blocks
SBS


Per end post
Post
As above

Base
As above

Base Screws
As above

Connector
As above

Connector Screws
As above

Top Rail Screws
As above

Setting Blocks
As above

End Cap
VCT

End Cap Rivets
FS4-6

Login into Ezispec to download a PS1 for this style.

VRT Top Rail

Per lineal metre
Top Rail
VRT

Inner Rail
DRH

Mid Rail
VRL2

Retaining Gaskets
SRD

Top rail rivets
FS4-4

Lower Rail
VRL2

Retaining Gaskets
SRB

Wedge Gaskets
SWE70


Per intermediate post
Post
VPM2
VPH2
VPE



Base
BSRF

Base
FVHT10-50.T1

Screws

Connector
ANGG

Connector
FT10-32.T1

Screws

Top Rail Screws
FV10-19.T1

Setting Blocks
SBS



Per end post
Post
As above

Base
As above

Base Screws
As above

Connector
As above

Connector Screws
As above

Top Rail Screws
As above

Setting Blocks
As above

End Cap
VCT

End Cap Rivets
FS4-6

Login into Ezispec to download a PS1 for this style.
